Modulador DVB Vyper 7
Modulador Satelital DTV

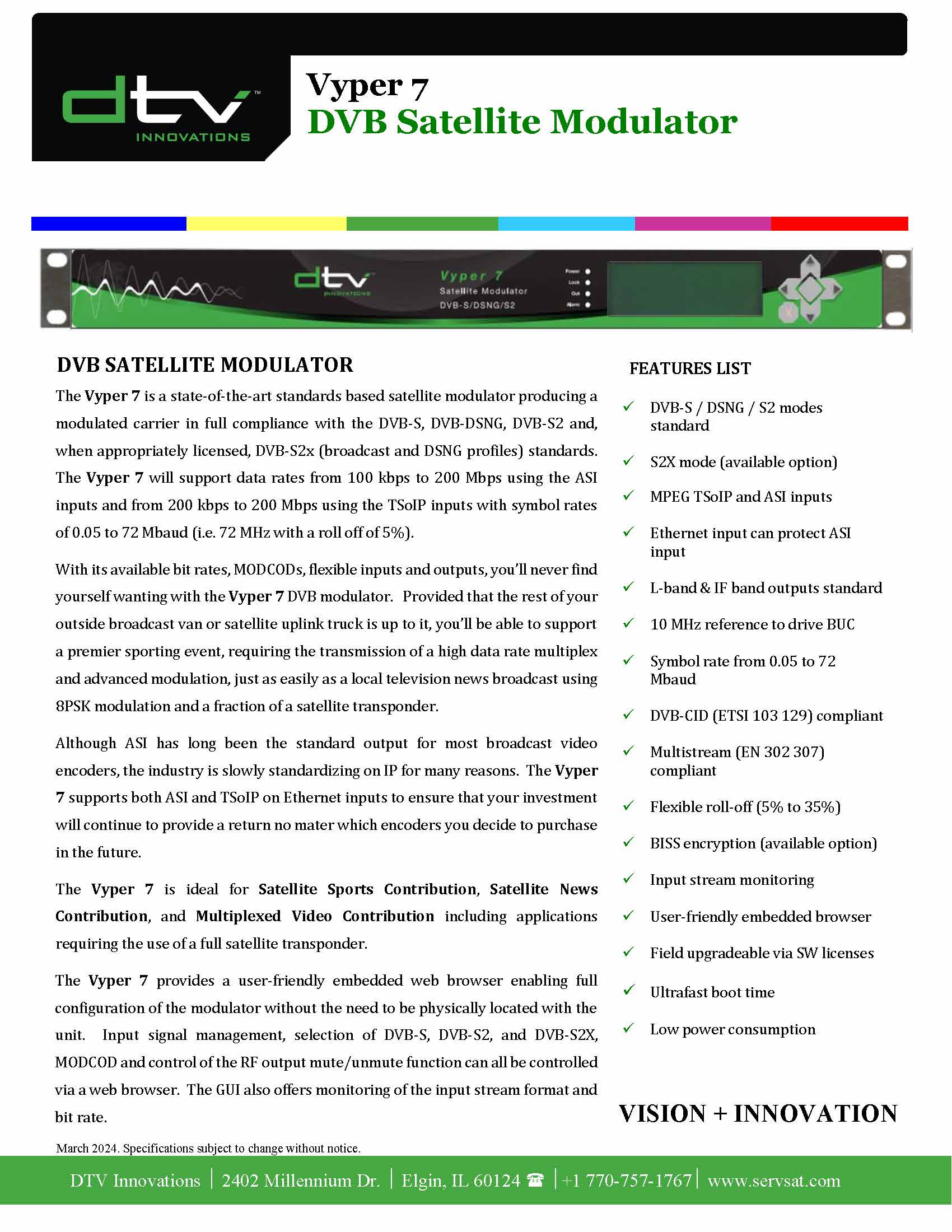

The Vyper 7 is a state-of-the-art standards based satellite modulator producing a modulated carrier in full compliance with the DVB-S, DVB-DSNG, DVB-S2 and, when appropriately licensed, DVB-S2x (broadcast and DSNG profiles) standards. The Vyper 7 will support data rates from .25 Mbps to 200 Mbps and symbol rates of 0.1 to 68 Mbaud (ie 72 MHz with a roll off of 5%).
Although ASI has long been the standard output for most broadcast video encoders, the industry is slowly standardizing on IP for many reasons. The Vyper 7 supports both ASI and TSoIP on Ethernet inputs to ensure that your investment will continue to provide a return no mater which encoders you decide to purchase in the future.
The Vyper 7 is ideal for Satellite Sports Contribution, Satellite News Contribution, and Multiplexed Video Contribution, including applications requiring the use of a full satellite transponder.
The Vyper 7 provides a user-friendly embedded web browser, enabling full configuration of the modulator without the need for physical proximity to the unit. Input signal management, including the selection of DVB-S, DVB-S2, and DVB-S2X, MODCOD, and control of the RF output mute/unmute function, can all be controlled via a web browser. The GUI also offers monitoring of the input stream format and bit rate.
